Product details

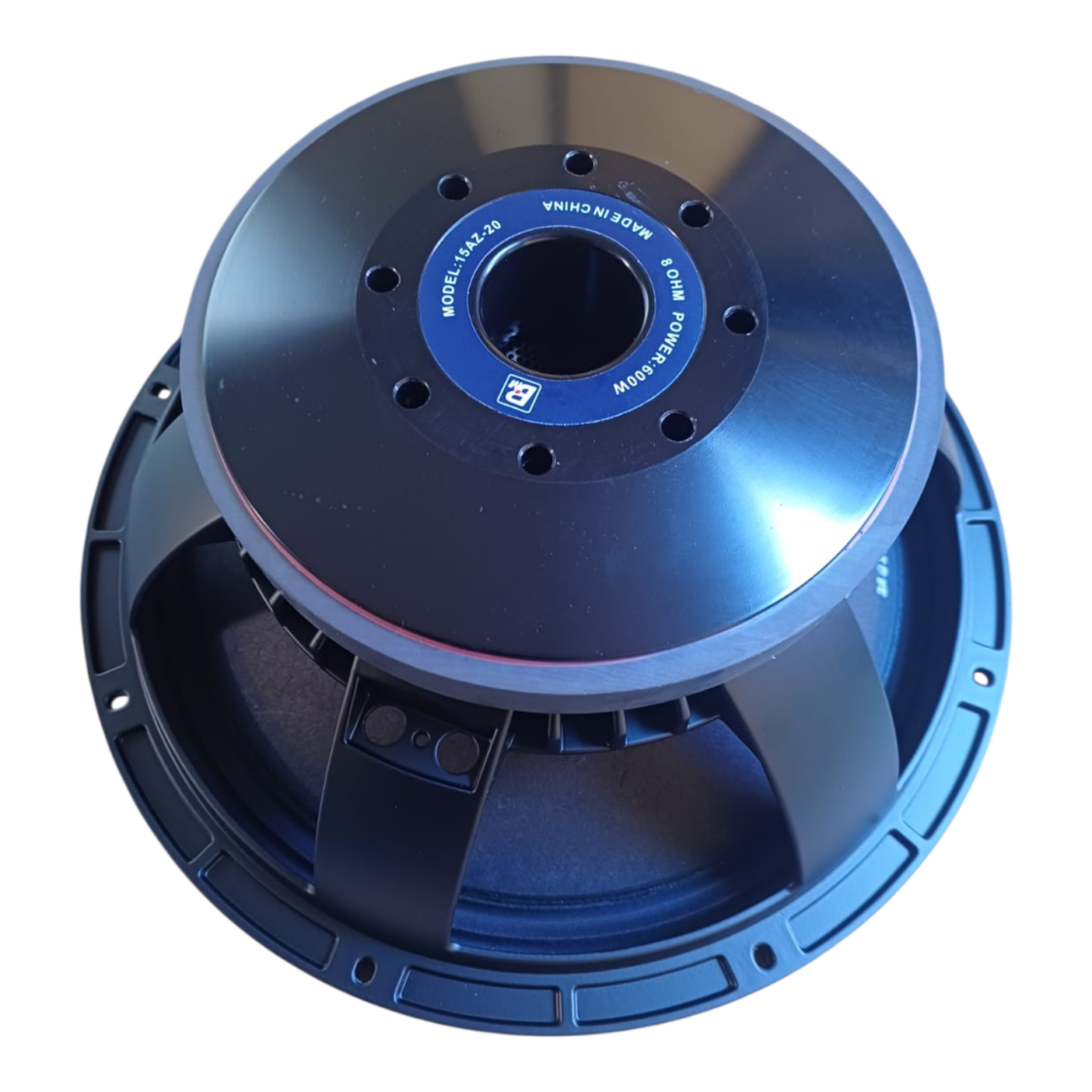

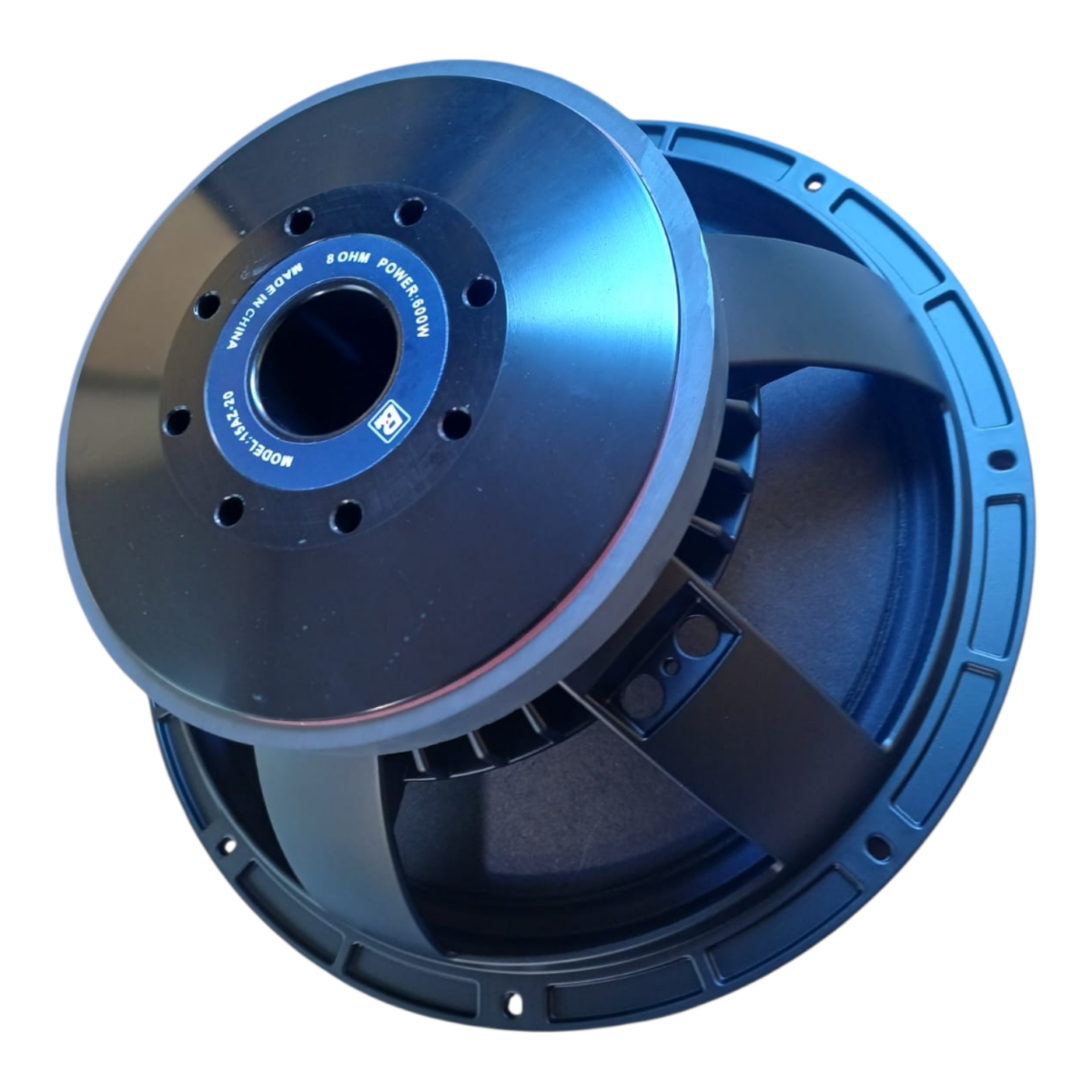

Upgrade your sound system with the BM 15AZ-20, a heavy-duty 15-inch “naked” mid-bass speaker built for high-output professional audio. This driver is engineered to deliver a powerful 600W performance, making it a reliable choice for DJ setups, church installations, and live stage monitors.
The BM 15AZ-20 features a rugged cast-aluminum chassis that provides maximum stability and heat dissipation during long hours of use. With an 8 Ohm impedance and high sensitivity, it produces punchy, tight bass and clear midrange frequencies that cut through the mix. Its precision-wound 4-inch voice coil ensures durability and high power handling for any pro-audio application.
Key Features
High Power Handling: 600W rating for deep, impactful sound.
Pro-Build Quality: Die-cast aluminum frame for reduced vibration and enhanced cooling.
High Efficiency: 96dB sensitivity allows for massive sound output with minimal distortion.
Versatile Audio: Wide frequency response tailored for both bass and mid-range clarity.
Standard Fit: Ideal replacement driver for most professional 15-inch speaker cabinets.
Technical Specifications
Feature Details
Model BM 15AZ-20
Nominal Diameter 15 inches (380mm)
Impedance 8 Ohms
Power Rating 600 Watts
Sensitivity 96 dB
Frequency Range 40 Hz – 2500 Hz
Voice Coil 4-inch SV-W
Chassis Cast Aluminum
